Automatic Balancing Valves
IMI Flow Design is the established leader in quality and innovation for automatic balancing valves and owns many patents, including several for constant flow regulators.
IMI Flow Design products rely on stainless steel for all parts that flex or slide.
IMI Flow Design’s patented consolidated ports and patented hybrid ports provide the best chance in the industry for debris to pass through without causing a problem.
Several patented IMI Flow Design technologies improve performance at low differential pressure, thus saving energy as compared to the competition.
All IMI Flow Design regulators are precision machined and skillfully assembled in a process that includes continuous flow testing to eliminate errors.
These features and others make IMI Flow Design’s product the most reliable in the industry.
Manual Balancing Valves
ASHRAE recommends that manual balancing valves be placed on the coils, risers, branches, and pump discharge so that the system can be proportionally balanced. This method is preferred by most designers for constant speed systems. Proportional balancing strives to have all circuits with pressure drop equal to the index circuit which already has the most loss. In the typical layout, the index circuit is highlighted. When proportional balancing is complete, the design GPM is achieved by trimming the pump impeller or throttling the pump balancing valve.
Coil Hook-up Kits
IIMI Flow Design offers Pre-configured Automatic and Manual Coil Hook-up Kits. Any combination of standard or custom coil hook-up kits can be assembled to fit your hydronic system requirements. These kits consist of automatic and manual balancing valves, combination ball valve with strainers, and union with manual vent and PT ports, and hoses if required.
Hook-up Assemblies and Components

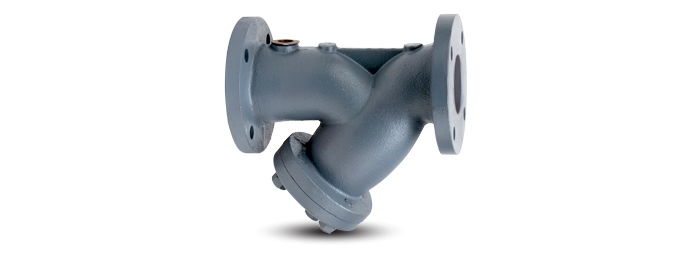

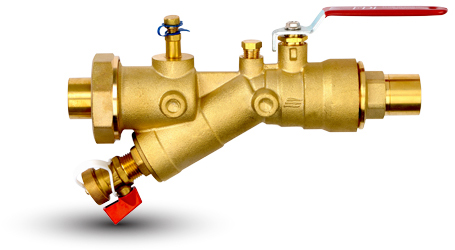

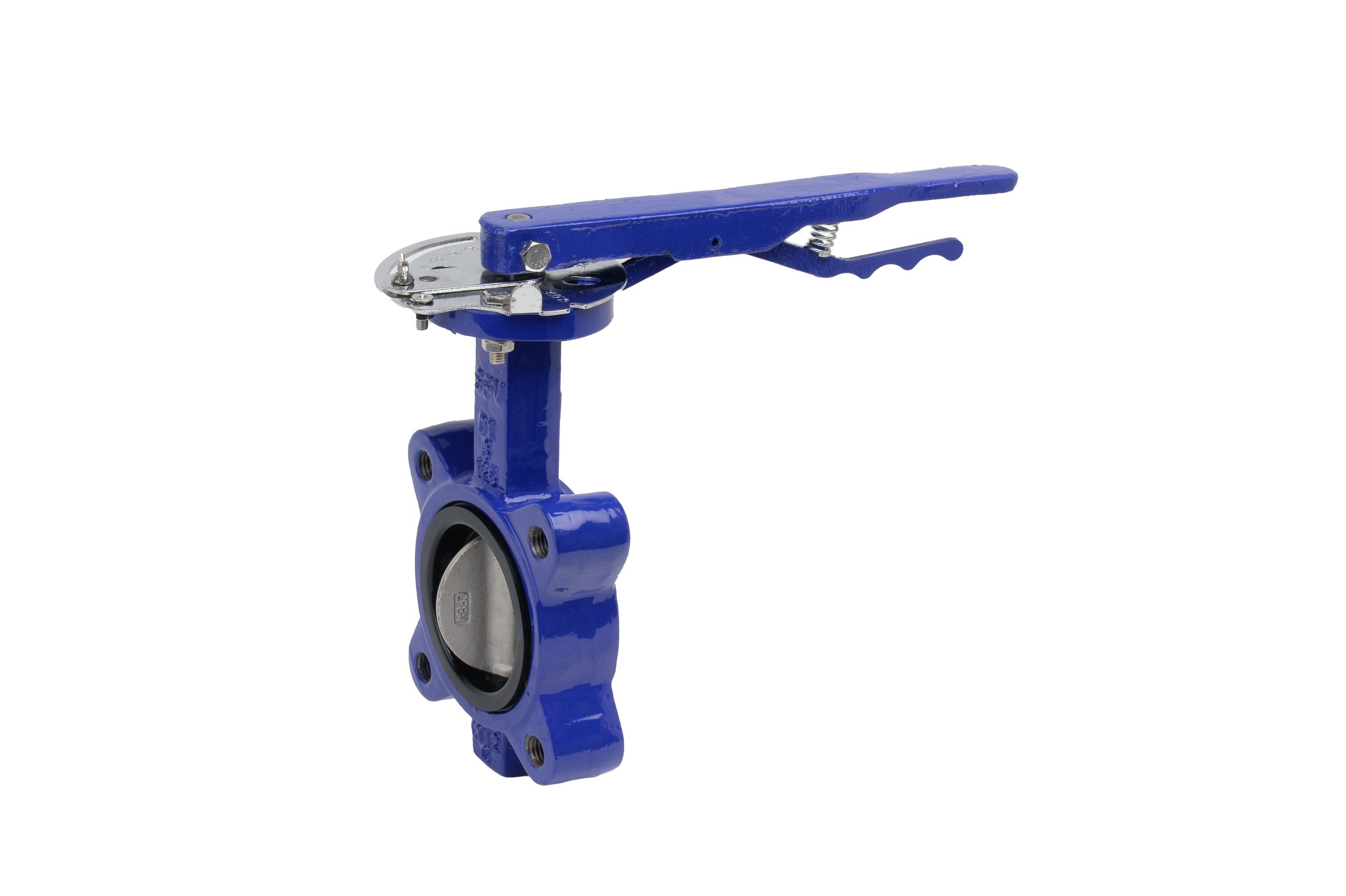

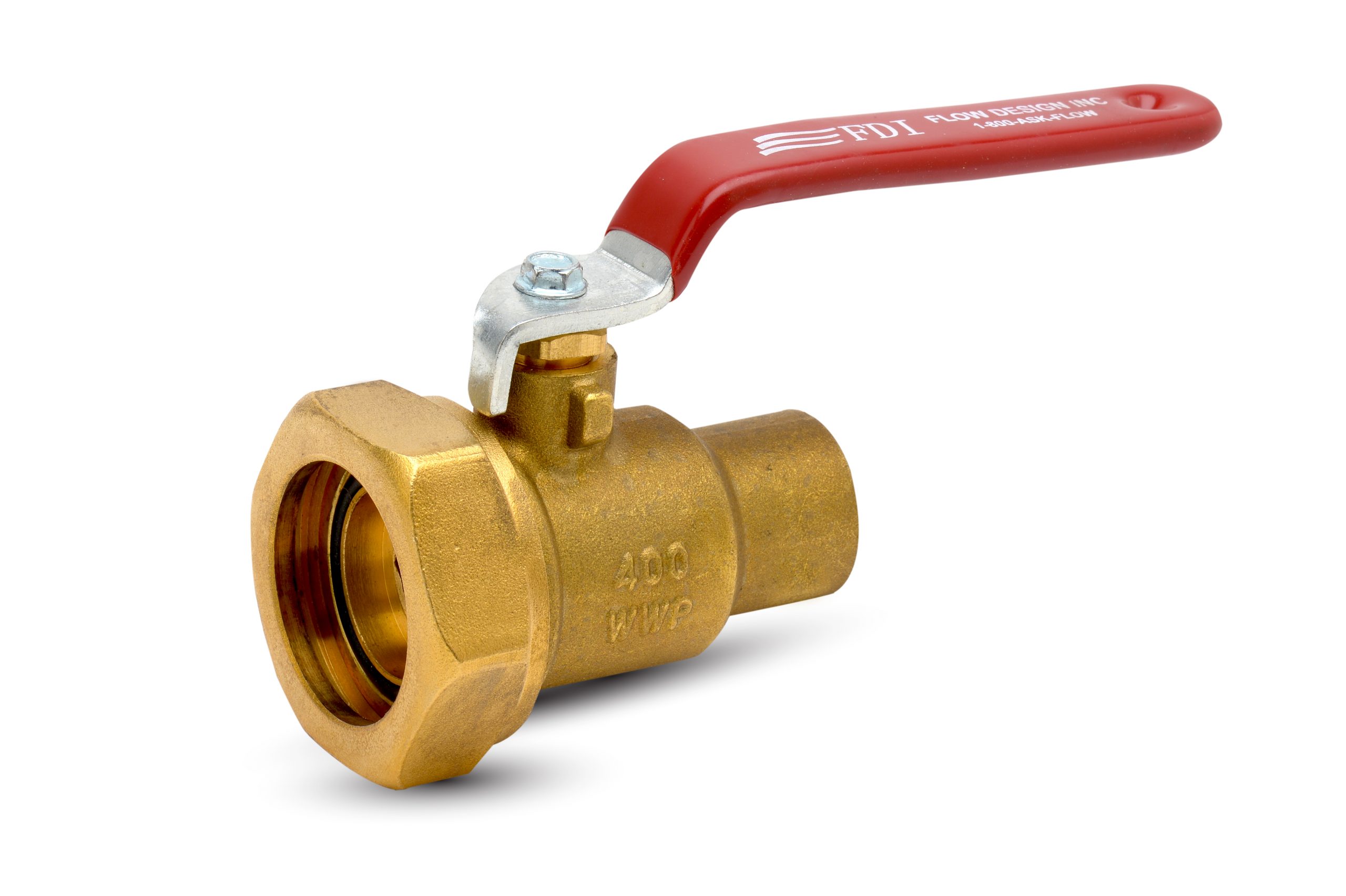

IMI Flow Design offers many components for a variety of hydronic applications. Butterfly Valve, Y Strainer, Control Valve, Raised Face Flange, Shut Off Ball Valve with Union, Union with two port option, and Combination Y Strainer and Ball Valve with Union.
Hook-up Assemblies and Components
Pressure Independent Valves & Controllers

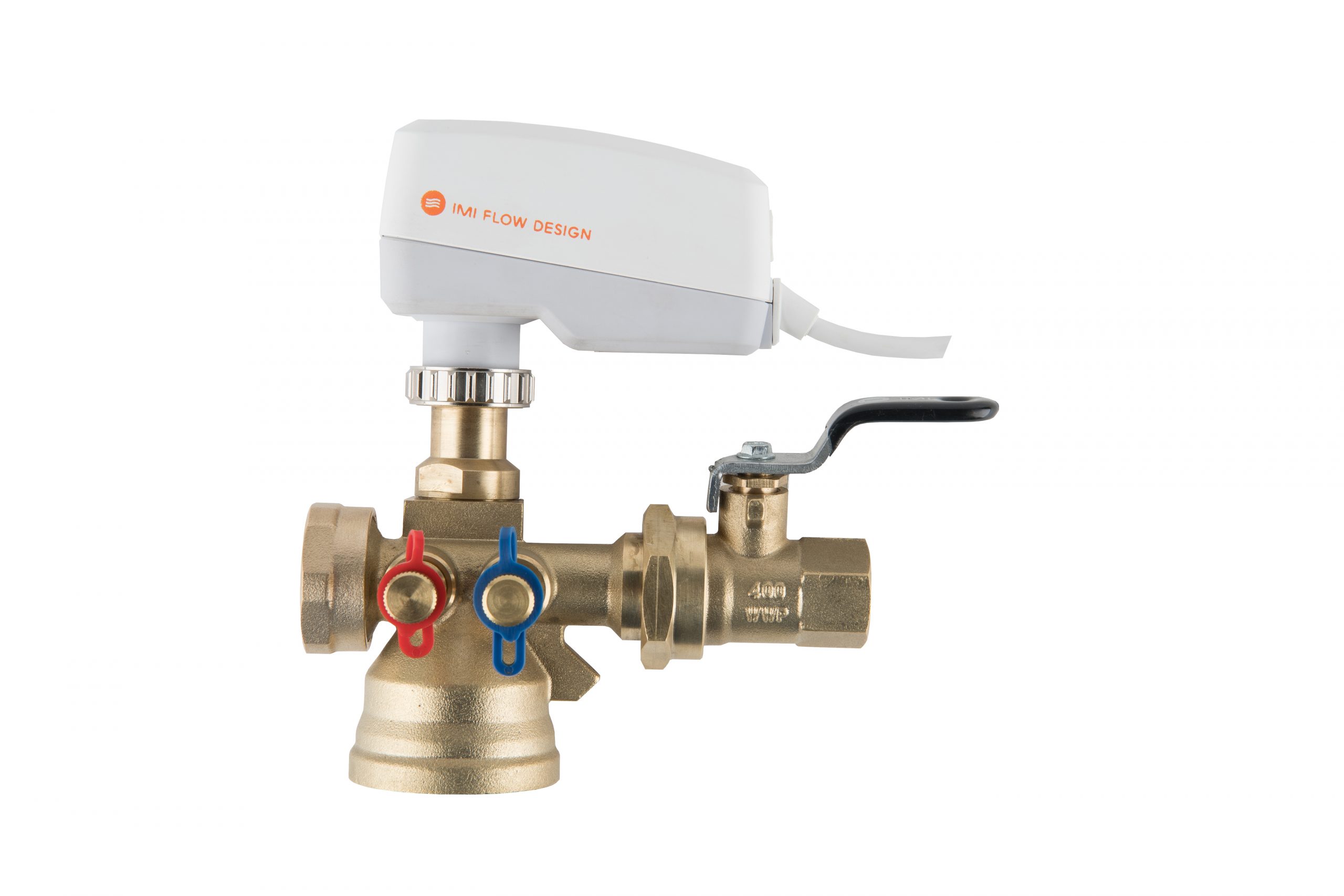

The Harmony delivers a complete hydronic balancing and control solution that optimizes the performance of cooling and heating systems. Engineered to provide more precise control at minimal energy consumption, Harmony advances PICV technology with first-in-the industry innovations for enhanced measuring and diagnostics, easier system maintenance and faster commissioning.
Pressure Independent Valves & Controllers
Pump Packages, Test Kits, and Accessories
IMI Flow design offers product components to fit many of your hydronic needs. Air Vents for continuous air venting for hot and chilled water systems. Test kits for field monitoring and adjusting of AccuSetter Valves, Pitot Tubes, and Venturis. Dielectric Nipple for preventing galvanic corrosion between dissimilar metals. Extended handles to protrude through the pipe insulation for easy access. PPCV pump isolation valve with full port plated ball and PTFE seats to reduce possible leak locations to a minimum. PT Ports with cap design utilizing a ground-joint union style seal backed with an O-ring and countless other accessories for your hydronic system.
Pump Packages, Test Kits, and Accessories
VersaFlow

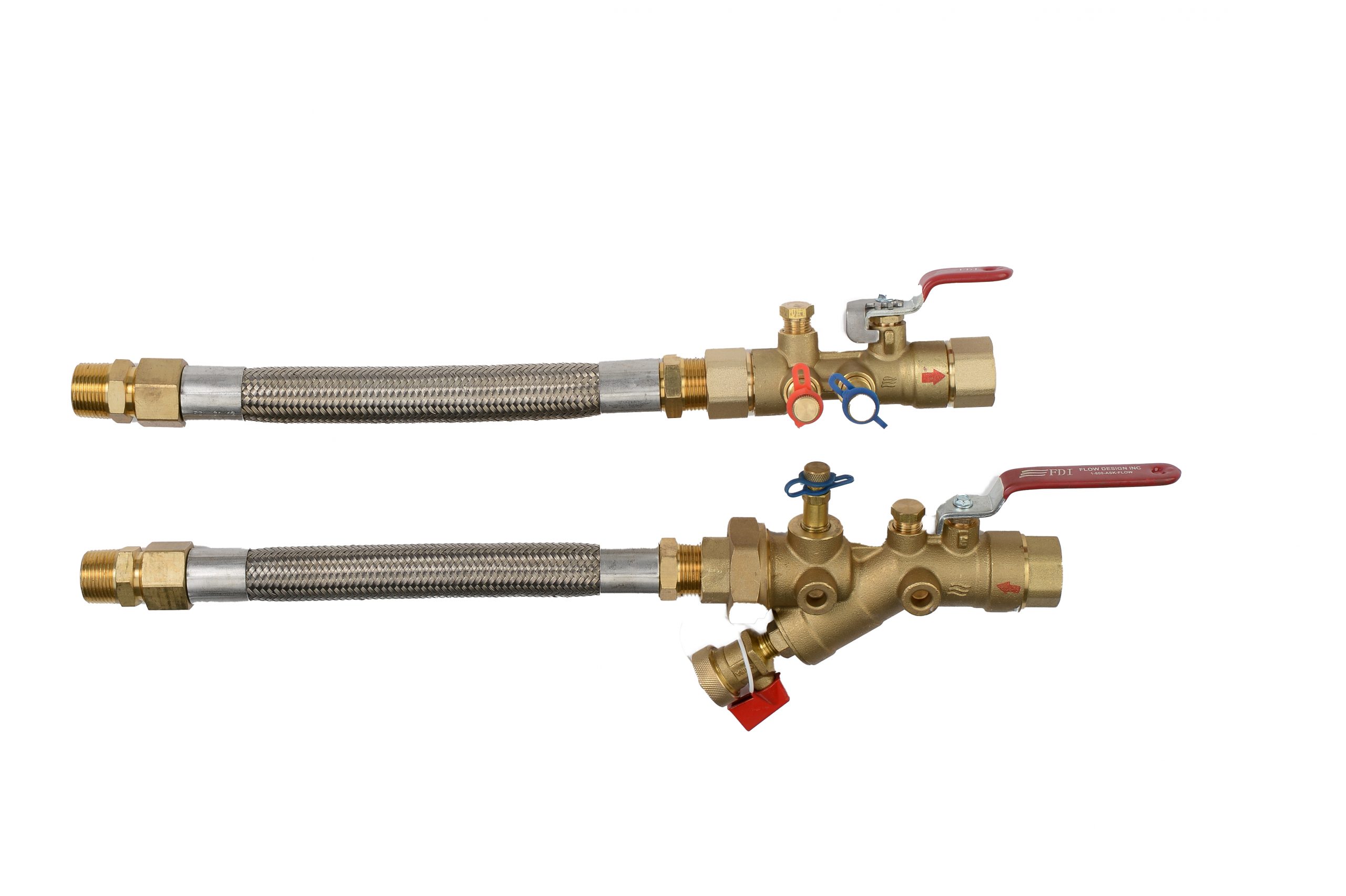

VersaFlow Hose kits come in 4 different hose pack combinations.
- Kit A features the AutoFlow automatic balancing valve on the return side of the coil as recommended by ASHRAE. Automatic balancing offers a number of advantages over manual or differential temperature balancing.
- Kit B has a manual balancing valve on the return side of the coil as recommended by ASHRAE. The VersaFlow manual balancing kit features a calibrated venturi valve instead of a circuit setter. The venturi has a number of advantages over the circuit setter.
- Kit C includes a Model UB ball valve, Model YC strainer with ball valve and two Model S2/S3 hose assemblies.

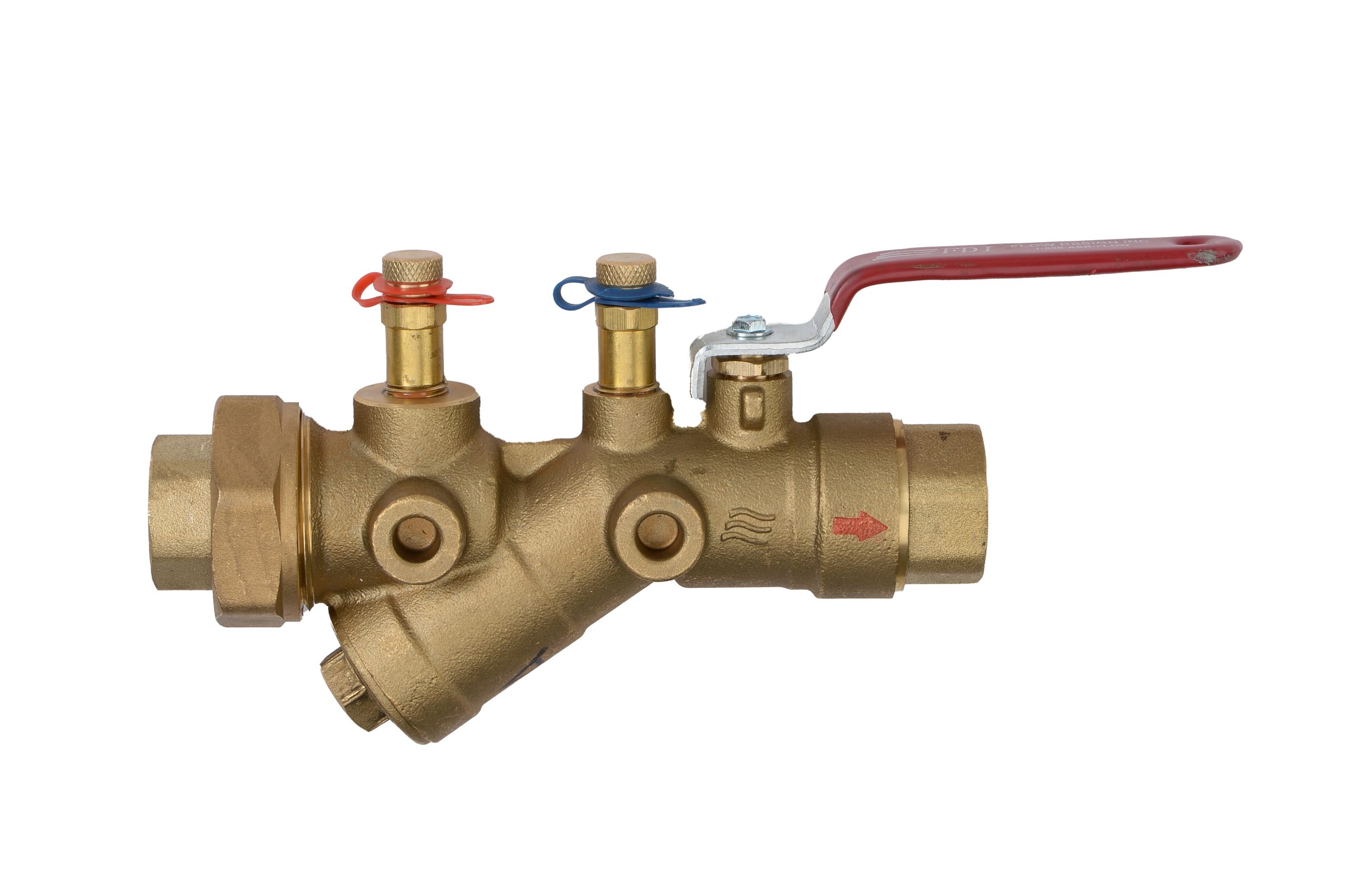

- Kit AC includes Model AC combination AutoFlow regulator with dual P/T ports and shut off valve and Model YC strainer with ball valve and two Model H2/H3 hose assemblies.
Domestic Water (Lead Free) Manual Balancing Valves

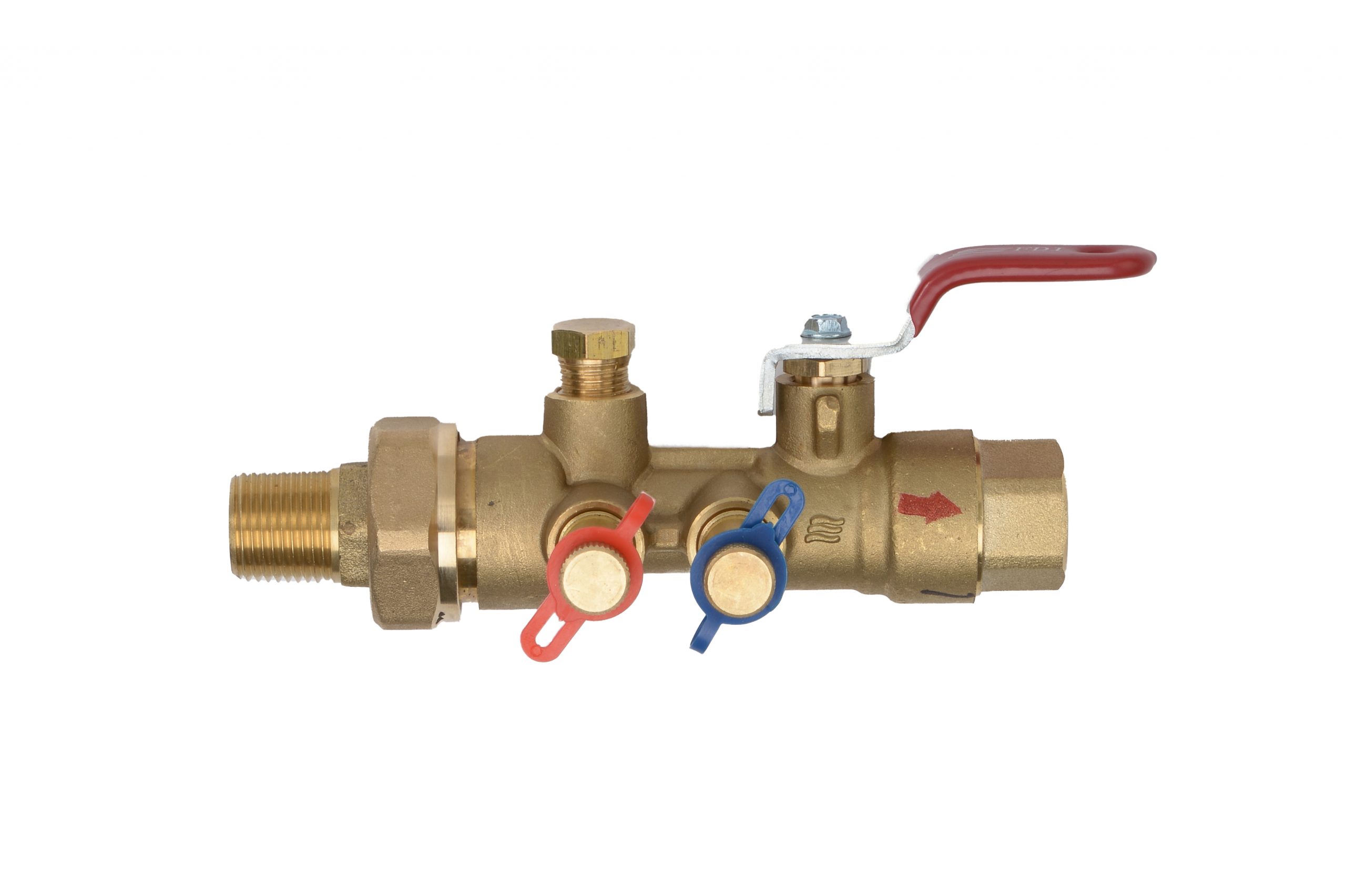

UA Zero is a lead free shut off and manual venturi balancing valve with Large diameter plated ball and PTFE seats. The Hydronic and Potable water balancing valve includes PT Ports and memory stop.
Domestic Water (Lead Free) Manual Balancing Valves
Domestic Water (Lead Free) Automatic Balancing Valves

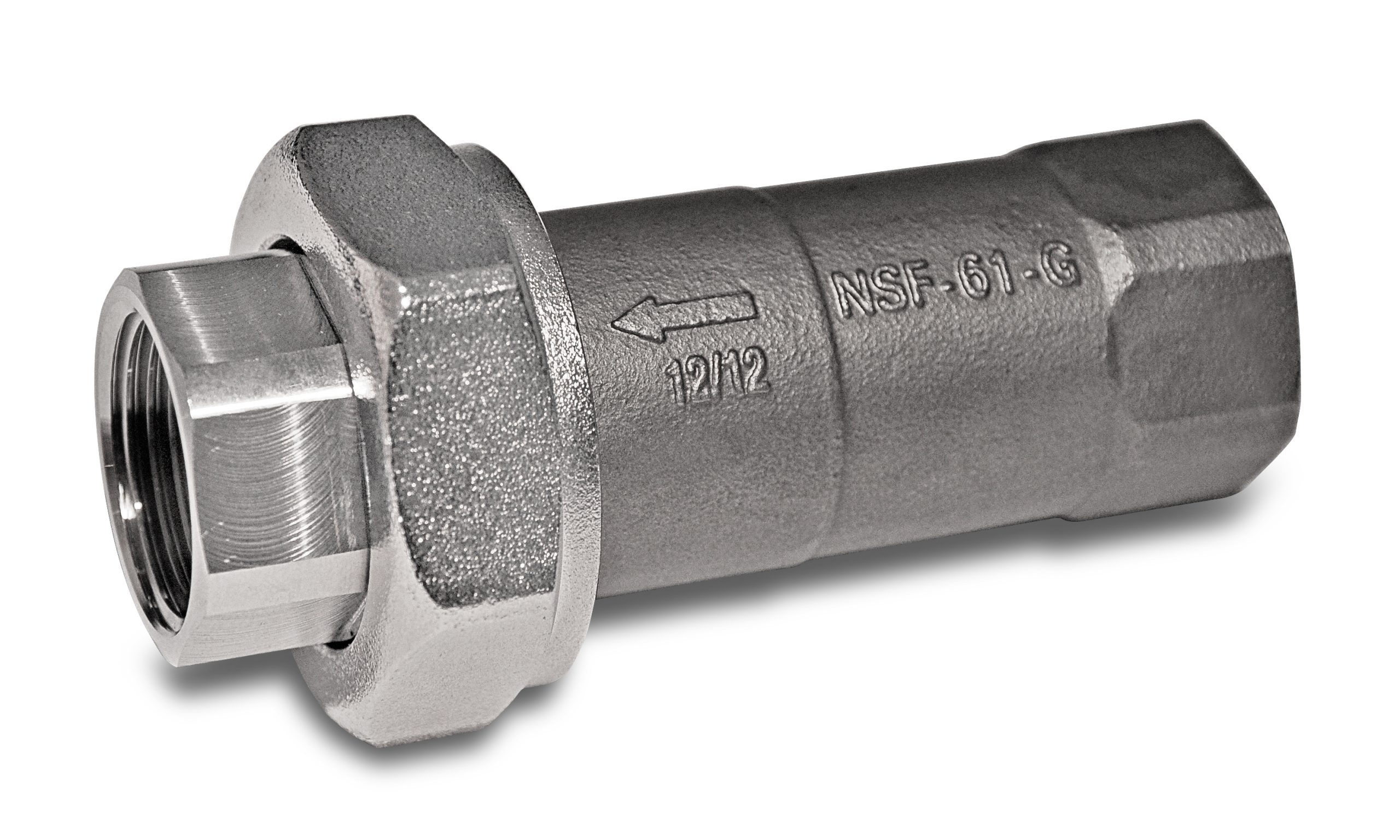

Designed specially for hot water recirculation applications, the ICSS is an Automatic flow control valve that is NSF/ANSI 61-G Certified and approved directly by NSF for commercial hot water contact applications
Domestic Water (Lead Free) Automatic Balancing Valves
Controls / ATC
MI Flow Design model E2 and E3 Two position spring return control valves. These valves are designed for on/off control for heating and cooling applications
Valve Options
Pt Ports, air vents, hose end adapters, hose end drain valve with cap, Mini ball drain valve, plastic bagging for hook-up, extended handles, Extended PT ports, stem extenders, automatic air vents, memory stop, Butterfly valve memory stop, accessory ports, metal ID tag, plastic ID Tags, and FPT tap.
Adapters & Fittings
SM adapter, SF adapter, FM Adapter, bushings, reducing couplings, dielectric nipple, Standard nipple, nipple with inverted flare, piping tee, and propress adapters.
